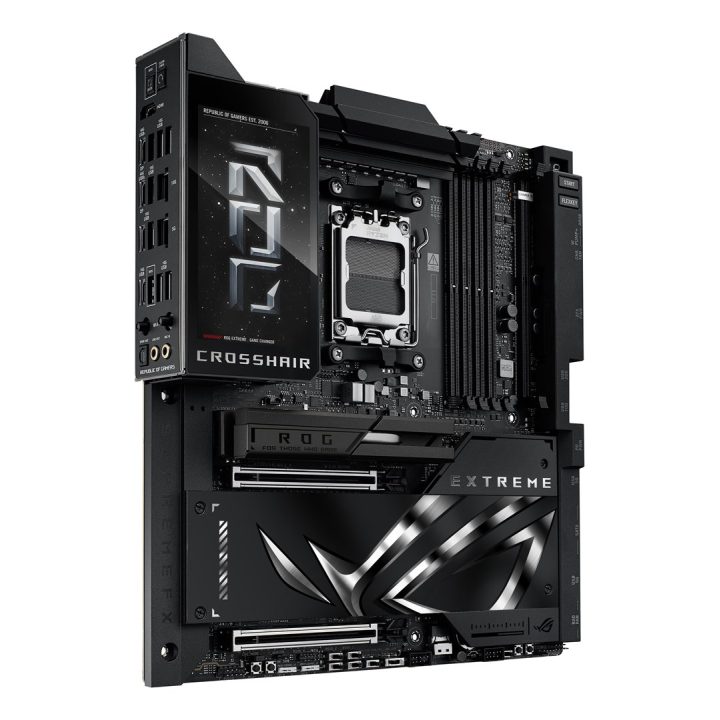

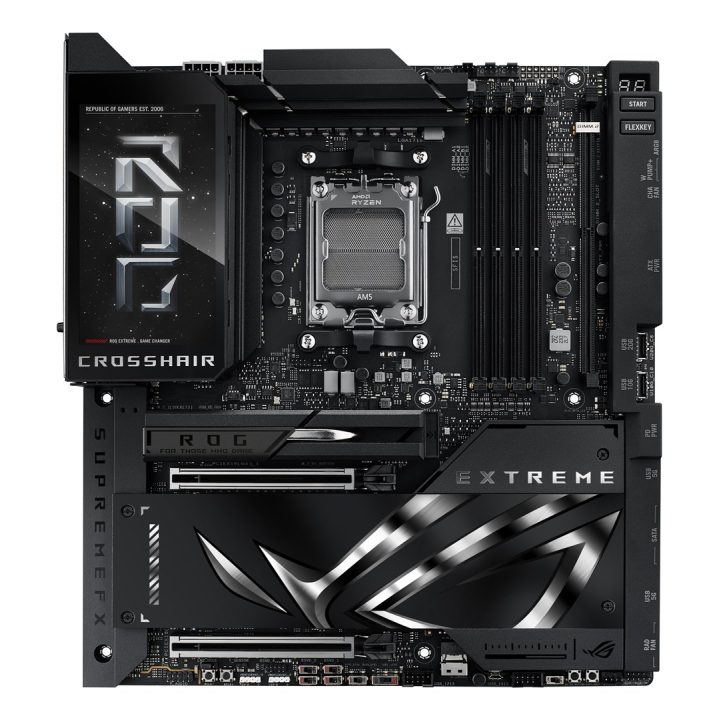

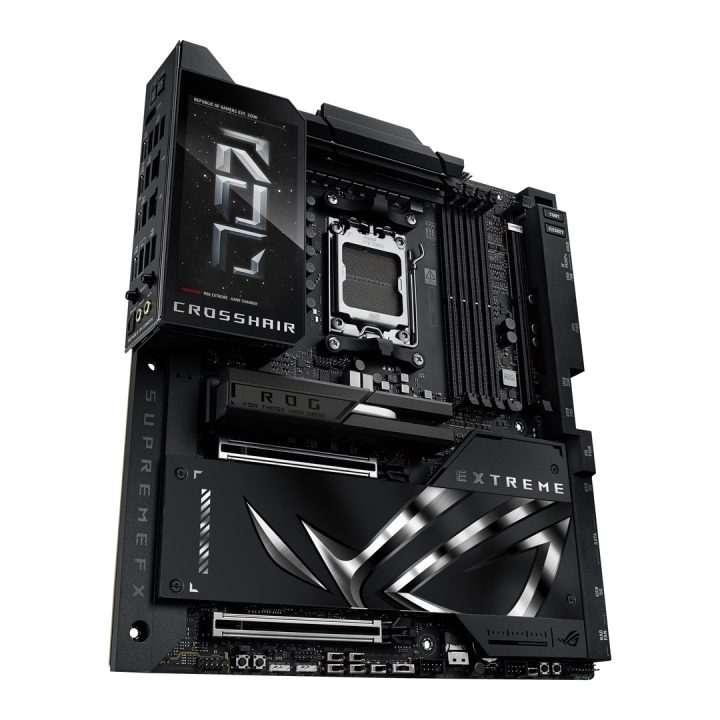

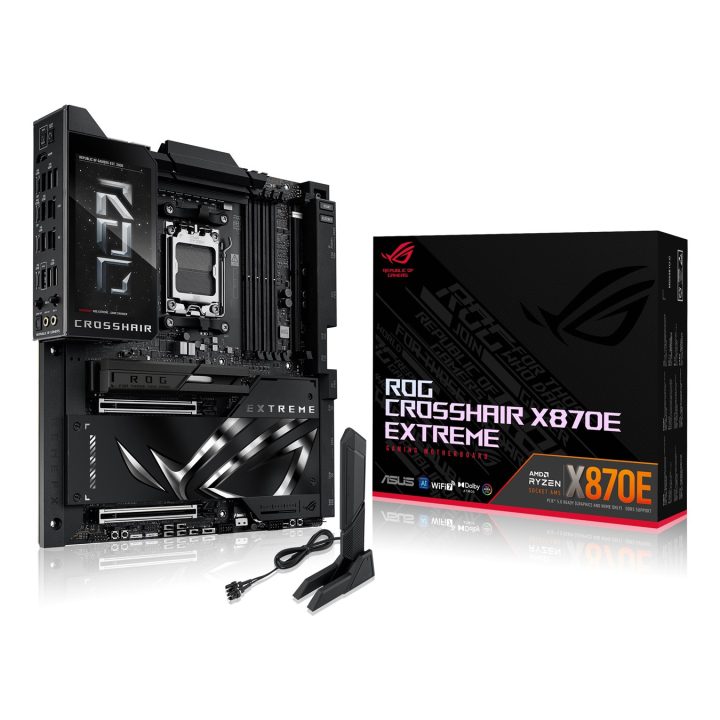

ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX immagini
| EAN | 4711387984963 |
|---|---|
| Codice produttore | 90MB1LB0-M0EAY0 |
| Disponibilità | 7 pezzi pronti |
| Tempi di consegna | Indicati nella conferma d'ordine, insieme al costo di trasporto |
| Peso | 5,28 kg |
| Misure imballo | 32,5 × 37,5 × 13 cm |
| Special features | Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports * Specifications vary by CPU types. ** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled. ** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode. ** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled. |
|---|---|
| Other features | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) NitroPath DRAM Technology *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Ethernet LAN | Si |
| Bluetooth version | 5.4 |
| Profondita | 277 mm |
| WiFi-AP antenna jack | 1 |
| 12V power connector | Si |
| Ethernet interface type | 10 Gigabit Ethernet, 5 Gigabit Ethernet |
| Number of storage drives supported | 10 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| EAN | 4711387984963 |
|---|---|
| Codice produttore | 90MB1LB0-M0EAY0 |
| Disponibilità | 7 pezzi pronti |
| Tempi di consegna | Indicati nella conferma d'ordine, insieme al costo di trasporto |
| Peso | 5,28 kg |
| Misure imballo | 32,5 × 37,5 × 13 cm |
